High Pressure Gate Valves


We produce all types of Gate Valves under our brand “” covering all types like bolted bonnet, Pressure Seal Bonnet, Seal welded Bonnet, Union Bonnet etc. Gate Valves in Solid Wedge, Flexible Wedge and Dual Disc Designs are made as per API-600 and API 6D. Pressure rating from 150# through 2500# in Forged and Cast Carbon Steel, Alloy Steel, Stainless Steel of all Grades and Super Alloy Steel like Alloy-20, Hastelloy-C, Duplex and Super Duplex Steels. FLOEC Gate Valves are offered with smooth machined full bore and full opening of Wedge to make certain that there is an eradication of additional pressure drop across the Valve. Screwed-in or Seal Welded Seat Rings guarantee perfect tightness for a longer period of service. In high temperature and high  pressure Valves, Seat Rings are either integral with body or seal welded as per standard practice and process for highest perfection and safety.

Gate Valves are offered with precisely machined and lapped backseat to guarantee re-packing under pressure while the Valve is in full open condition. Availability of Solid Wedge, Flexible Wedge, Dual Disc Wedge and Parallel Wedge designs put forward maximum choice to clients for appropriate selection.

Gaskets and Gland packing material are chosen considering service conditions like temperature, corrosion, erosion, pressure, vacuum and other uses. Gate Valves make sure about smooth operation, tight shutoff, consistency, high safety and durability.

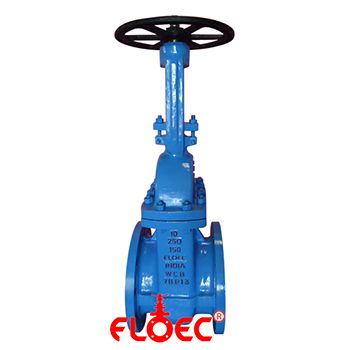

Gate Valve
150#

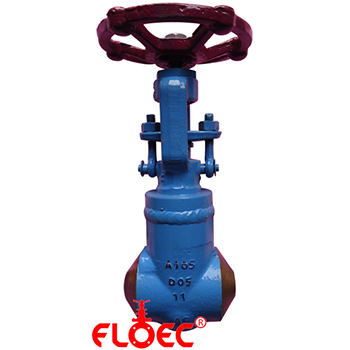

Forged Gate Valve
1500# Seal Welded Bonnet

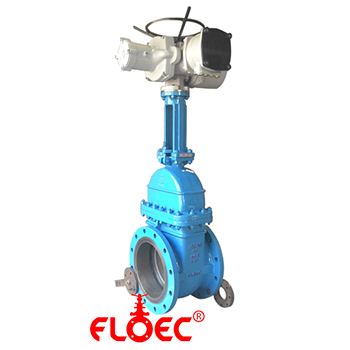

Electric Actuator
Operated Gate Valve




Monel Forged
Gate Valve 800#


Gate Valve - Technical Specification
Size Range 50 NB through 900 NB
Pressure Rating ASME - 150#, 300#, 400#, 600#, 900#, 1500#, 2500#
Type OS & Y, Bolted / Pressure Seal Bonnet / Seal Welded Bonnet etc.
End Connection Flanged / RTJ / Butt Weld
Operation Hand Wheel/ Manual Gear / Electric Motor Actuator
Port Opening Full
Seat Integral / Renewable / Seal Welded
Wedge Solid / Flexible / Dual Disc
Gasket & Packing PTFE / Graphite / Spiral Wound / Ring Joint
MOC Refer Material Chart
Design Code API - 595 / 600 / 603 / 604 / 6D
Testing API 598
Inspection 3rd Party / Client / Manufacturer
