Ball Valves
Designed and manufactured to API 6D and BS 5351. Two-piece, three-piece and one-piece constructions, fire-safe and non-fire-safe, with blow-out proof stem for demanding process service.
15 NB through 600 NB
Trusted Across Process Industries
Valves and engineered equipment from the AB Group supplied to leading oil & gas companies and government undertakings across power, steel and mining.
Product Overview
Engineered for safety,
efficiency and durability

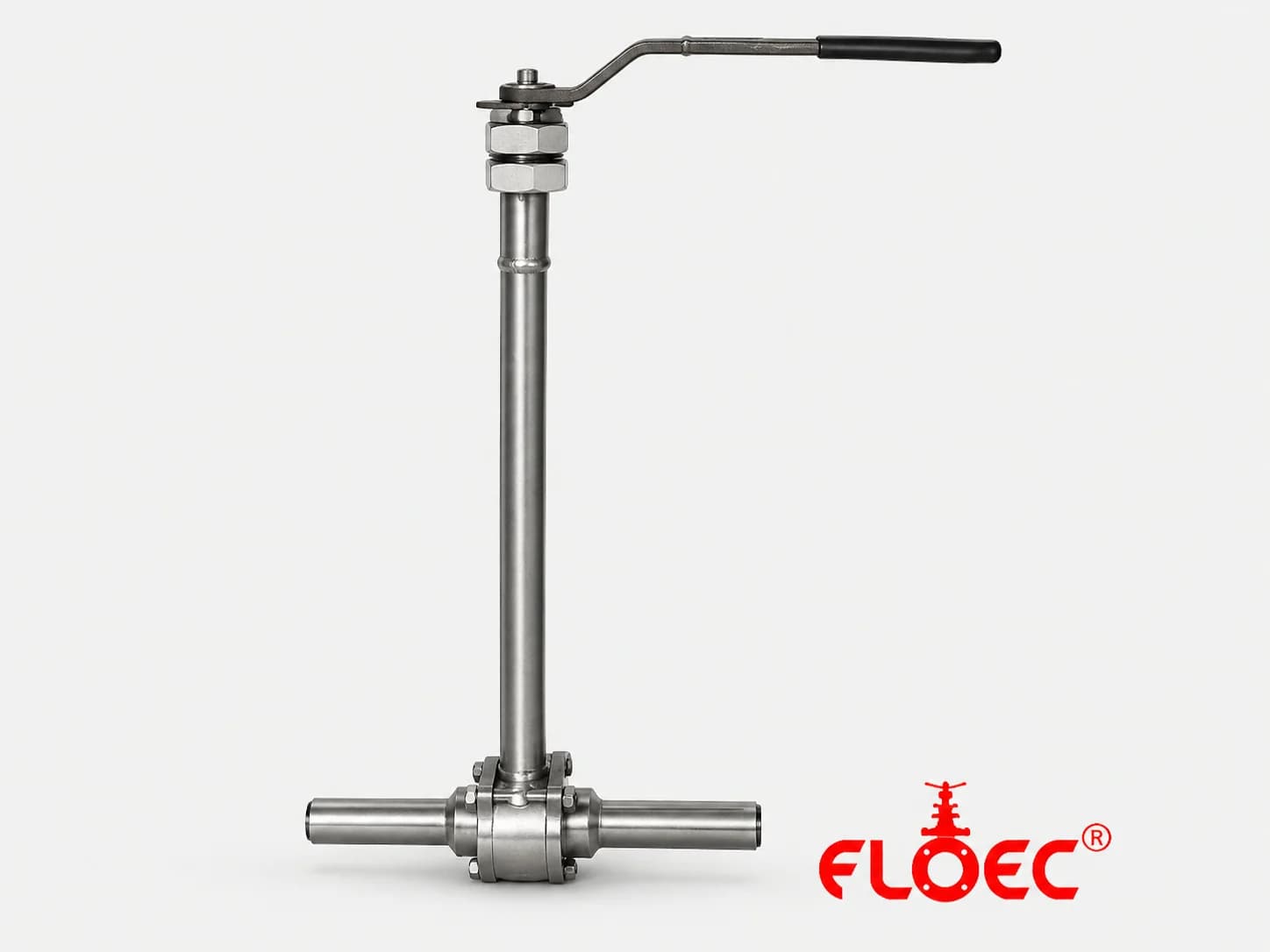

FLOEC ball valves are designed and manufactured in accordance with the latest international standards API 6D and BS 5351. Three-piece and two-piece constructions are offered for efficiency, reliability and economy. Three-piece ball valves are maintenance-friendly and suitable for on-line maintenance.
The stem is blow-out proof. A specially designed stem seal is intended to guarantee zero passing through the gland for a long period.
Metal-seated ball valves are manufactured to leakage class IV and V according to customer requirements, supported by continuous design and production development. Ashwathi maintains an in-house fire-safe test facility; the fire test was witnessed by Bureau Veritas.
Construction
Design and testing notes
- 01
Two-piece and three-piece design
Three-piece and two-piece constructions are offered for efficiency, reliability and economy.
- 02
On-line maintenance
Three-piece ball valves are maintenance-friendly and suitable for on-line maintenance.
- 03
Blow-out proof stem
Blow-out proof stem with a specially designed stem seal intended to guarantee zero passing through the gland for a long period.
- 04
Metal seated, class IV and V
Metal-seated ball valves manufactured to leakage class IV and V according to customer requirements.
- 05
In-house fire-safe testing
Fire-safe test facility on site. The actual fire test was witnessed by Bureau Veritas.
- 06
One-piece and fire-safe options
Available as 3-piece / 2-piece / 1-piece, fire-safe and non-fire-safe, with floating or trunnion-mounted ball.
Technical Data
Technical specifications
Material of construction as published in the FLOEC material chart.
| Size Range | 15 NB through 600 NB |
|---|---|
| Pressure Rating | ASME/BS 150#, 300#, 600#, 800#, 900#, 1500#, 2500# |
| Type | 3 piece / 2 Piece / 1 Piece / Fire Safe / Non Fire Safe |
| End Connection | Flanged / RTJ / Victaulic / Screwed / Socket Weld / Butt-Weld |
| Operation | Wrench / Manual Lever / Manual Gear / Pneumatic and Motorized |
| Port Opening | Full / Regular |
| Seat | Metal Seated / PTFE / Carbon or Glass Filled Teflon / Graphite |
| Ball | Floating / Trunnion Mounted |
| Gasket & Packing | PTFE / Glass Filled Teflon / Graphite / Nylon |
| MOC | Refer Material Chart |
| Design Code | BS-5351 / API 6D |
| Testing | API 598 / API 607 |
| Inspection | 3rd Party / Client / Manufacturer |
Material of Construction
FLOEC Material Chart
Standard body, bonnet and trim combinations. Other materials are available on request; 600# and above are supplied with Stellite trim as standard.
| # | Body – Bonnet Material | Trim (Wedge / Seat / Disc) | Stem |
|---|---|---|---|
| 01 | Cast carbon steel ASTM A216 Gr. WCB / WCC | 13% Cr. S.S. | A182 F6 |
| 02 | Cast steel ASTM A352 Gr. LCB and LCC | A351 CF8 | A182 F304 |
| 03 | Low alloy steel ASTM A217 Gr. WC1, WC6, WC9, C12 | 13% Cr. S.S. | A182 F6 |
| 04 | Stainless steel 304 ASTM A351 Gr. CF8 | A351 CF8 | A182 F304 |
| 05 | Stainless steel 304L ASTM A351 Gr. CF3 | S.S. 304L CF3 | A182 F304L |
| 06 | Stainless steel 316 ASTM A351 Gr. CF8M | S.S. 316 CF8M | A182 F316 |
| 07 | Stainless steel 316L ASTM A351 Gr. CF3M | S.S. 316L CF3M | A182 F316L |
| 08 | Alloy 20 ASTM A351 Gr. CN7M | CN7M | UNS N08020 |
| 09 | Duplex SS CD4MCu / CuN / CD3MN | Duplex steel | UNS S32205 |
| 10 | Super duplex A890 Gr. 1A, 1B, 1C, 2A, 3A, 4A, 5A, 6A | Super duplex steel | UNS S32550 |
| 11 | Super alloy steel – Hastelloy Gr. B and C | Hastelloy B/C | Hastelloy B/C |
| 12 | Forged carbon steel – ASTM A105 | 13% Cr. S.S. | A182 F6 |
| 13 | Forged alloy steel – ASTM A182 F11, F22 | 13% Cr. S.S. | A182 F6 |
| 14 | Forged SS A182 F304 / 304L / F316 / 316L | F304/L / F316/L | F304/L / F316/L |
| 15 | SG / Ductile / C.I. of different grades | 13% Cr. SS / CF8 / CF8M | A182 F6 / F304 / F316 |
| 16 | Copper alloys of different grades | Cu. alloys / F304/L / F316/L | Cu. alloys / F304/L / F316/L |
Standards & Testing
Design, test and inspection codes
Certified & Recognised
Accreditations You Can Verify
FLOEC valves are designed, manufactured and dispatched under an audited quality management system. Select a certificate to view the full document.
Design, manufacture and dispatch of manual, electric and pneumatic operated industrial valves.
Government Purchase Enlistment Certificate for industrial valve manufacture.
Certificate of Recognition in the Valve Manufacturers category.
