Diaphragm Valves

FLOEC diaphragm valves with rubber or PTFE lining for extremely corrosive fluids, in water treatment, chemical, pharmaceutical and power applications.

BS 515615–250 NBLined

Request a Quote View Technical Specifications

Overview1 / 3

Product Overview

Lined Diaphragm Valves for Corrosive Service

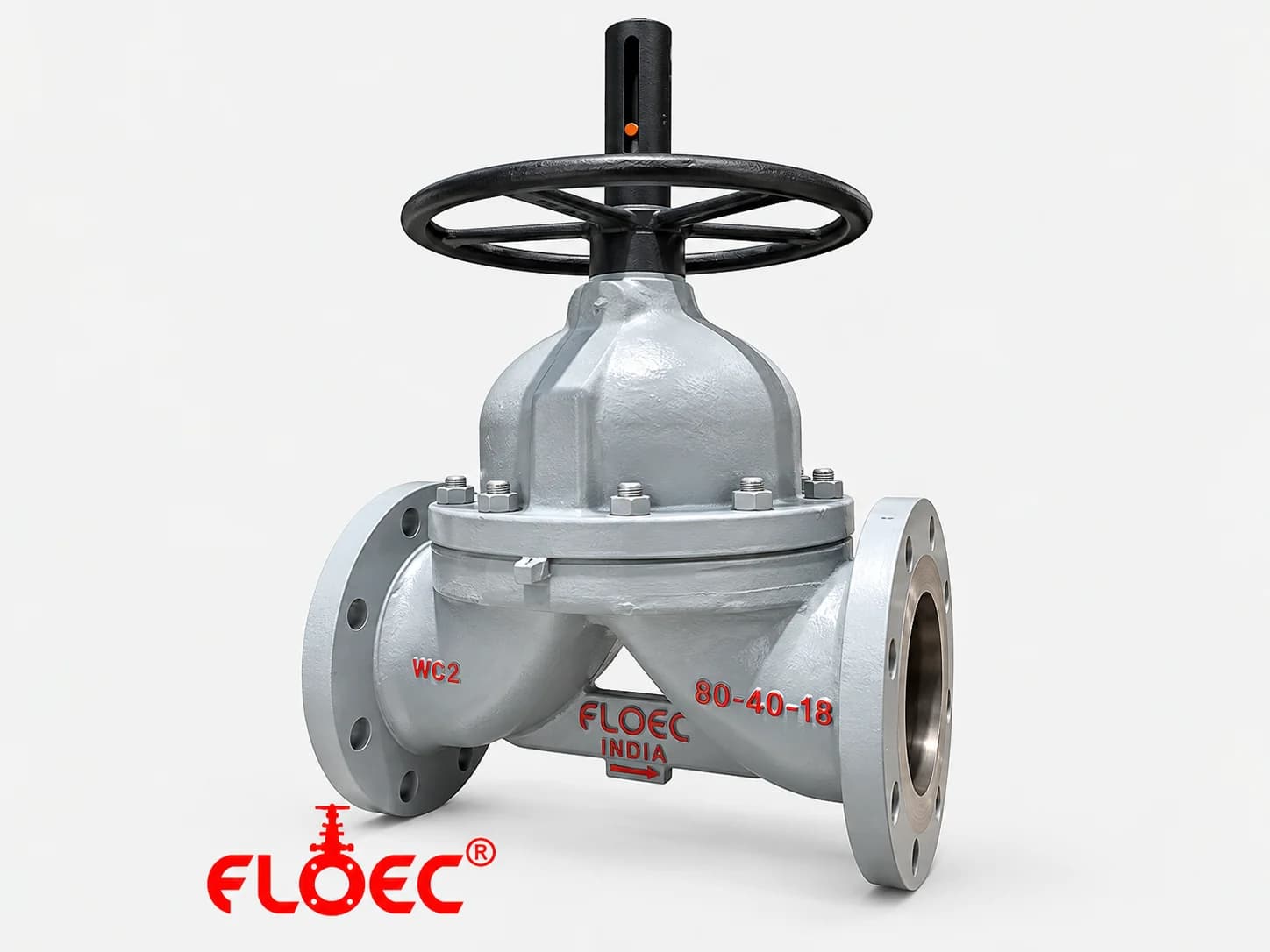

FLOEC diaphragm valves are designed and manufactured as per BS 5156. They are widely used in water treatment plants, fertilizer and petrochemical industries, pharmaceutical units, chemical process units, refineries and power plants, and are most appropriate for positive pressure and high vacuum conditions.

Total wet area and working parts are kept from contact with the working media by lining with different qualities of rubber, PTFE / PFA and similar materials, so extremely corrosive fluids are handled efficiently and safely.

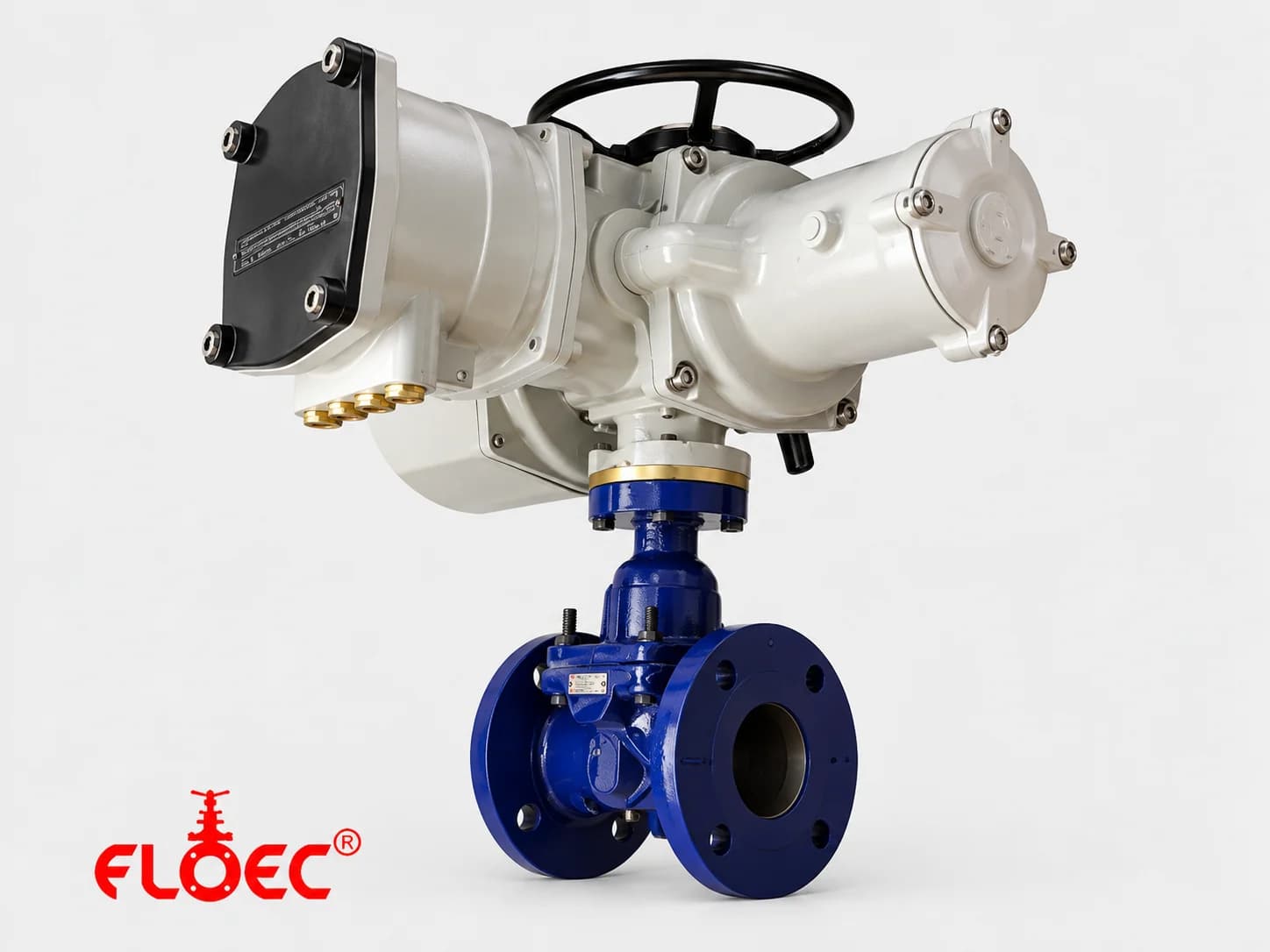

Maintenance is extremely simple: dismantle the bonnet from the body and the whole trim assembly can be taken out while the body remains in the pipeline, allowing online maintenance. Linear flow characteristics make the valve suited to throttling or modulating duty, and on/off and control automation is supplied with pneumatic actuators or cylinders.

Materials include cast iron, S.G. iron, cast carbon steel, stainless steel of all grades and high alloy steels like Alloy-20, CD4MCu and Hastelloy. Sizes run from 15 NB to 250 NB, with pressure ratings from ASME 125# / 150# / PN.

Key Features

Why Specify FLOEC Diaphragm Valves

Fully Lined

Rubber, PTFE or PFA lining keeps the body away from corrosive media.

Online Maintenance

Trim assembly comes out with the bonnet while the body stays in line.

Linear Characteristics

Suited to throttling and modulating duty as well as on/off.

Vacuum to Pressure

Appropriate for positive pressure and high vacuum conditions.

Automation Ready

Pneumatic actuators or cylinders for on/off and control service.

High Alloy Bodies

Cast iron, S.G. iron, carbon and stainless steel, Alloy-20, CD4MCu, Hastelloy.

Technical Specification

Diaphragm Valves Data

Size Range	15 NB through 250 NB
Pressure Rating	ASME 125 / 150# / PN10 / PN16 / PN25
Type	Screw down – Fully rubber lined / Unlined body
End Connection	Flanged and threaded
Operation	Hand wheel / Manual gear / Electric motor actuator
Port Opening	Full
Seat	Soft rubber / PFA / Integral
Disc	Equivalent body material with rubber lining / PTFE lamination
Gasket & Packing	NA
MOC	Refer Material Chart ↓
Design Code	BS 5156
Testing	API 598 / BS 6755
Inspection	3rd party / Client / Manufacturer

Material of Construction

FLOEC Material Chart

Standard body, bonnet and trim combinations. Other materials are available on request; 600# and above are supplied with Stellite trim as standard.

#	Body – Bonnet Material	Trim (Wedge / Seat / Disc)	Stem
01	Cast carbon steel ASTM A216 Gr. WCB / WCC	13% Cr. S.S.	A182 F6
02	Cast steel ASTM A352 Gr. LCB and LCC	A351 CF8	A182 F304
03	Low alloy steel ASTM A217 Gr. WC1, WC6, WC9, C12	13% Cr. S.S.	A182 F6
04	Stainless steel 304 ASTM A351 Gr. CF8	A351 CF8	A182 F304
05	Stainless steel 304L ASTM A351 Gr. CF3	S.S. 304L CF3	A182 F304L
06	Stainless steel 316 ASTM A351 Gr. CF8M	S.S. 316 CF8M	A182 F316
07	Stainless steel 316L ASTM A351 Gr. CF3M	S.S. 316L CF3M	A182 F316L
08	Alloy 20 ASTM A351 Gr. CN7M	CN7M	UNS N08020
09	Duplex SS CD4MCu / CuN / CD3MN	Duplex steel	UNS S32205
10	Super duplex A890 Gr. 1A, 1B, 1C, 2A, 3A, 4A, 5A, 6A	Super duplex steel	UNS S32550
11	Super alloy steel – Hastelloy Gr. B and C	Hastelloy B/C	Hastelloy B/C
12	Forged carbon steel – ASTM A105	13% Cr. S.S.	A182 F6
13	Forged alloy steel – ASTM A182 F11, F22	13% Cr. S.S.	A182 F6
14	Forged SS A182 F304 / 304L / F316 / 316L	F304/L / F316/L	F304/L / F316/L
15	SG / Ductile / C.I. of different grades	13% Cr. SS / CF8 / CF8M	A182 F6 / F304 / F316
16	Copper alloys of different grades	Cu. alloys / F304/L / F316/L	Cu. alloys / F304/L / F316/L
