FLOEC Industrial Valves
Forged Steel Gate / Globe / NRV Valves
Compact high-pressure FLOEC forged steel gate, globe and non-return valves to API 602 for small pipelines up to 50 NB.
Overview1 / 2
Trusted Across Process Industries
Valves and engineered equipment from the AB Group supplied to leading oil & gas companies and government undertakings across power, steel and mining.
Product Overview
Compact Forged Valves for High-Pressure Lines

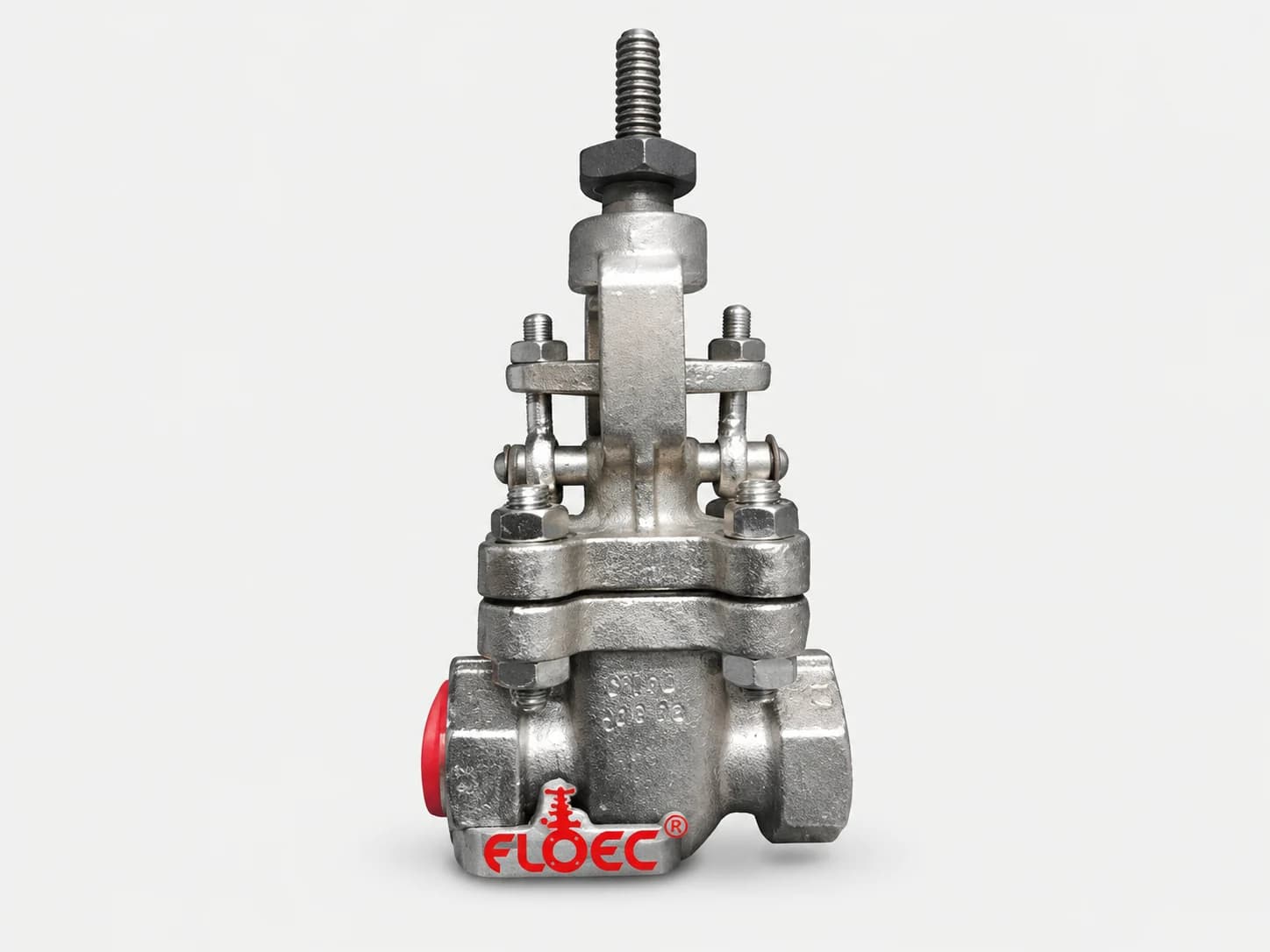

FLOEC Forged Steel Gate / Globe / Non-Return Valves are for high-pressure applications, have a compact design and are manufactured as per API 602, making them well suited to small pipelines up to 50 NB. They come with a choice of threaded or socket weld ends. Hard-faced trim material guarantees faultless sealing and durability.
They are precisely machined and, in gate and globe types, are provided with a lapped back seat so the gland packing can be replaced or repacked while the valve is in the full-open position, which is safe and cost-effective.
Materials include forged carbon steel to A105, forged alloy steel such as LF2, F11, F22 and F51, and forged stainless steel such as F304, F304L, F316 and F316L. Sizes run from 10 NB through 50 NB with pressure ratings from ASME 800# through 2500#. The range covers forged steel globe valves, non-return valves and gate valves.
Typical Applications
- Instrument Tapping
- Steam Drains
- Oil & Gas
- Refineries
- Power
- Hydraulics
Key Features
Why Specify FLOEC Forged Steel Gate / Globe / NRV Valves
Compact & Strong
Forged bodies for high-pressure small-bore lines up to 50 NB.
API 602
Gate, globe and non-return types designed to API 602.
Hard-Faced Trim
Reliable sealing and long service life.
Lapped Back Seat
Repack gland while the valve is fully open.
SW or Threaded Ends
Socket weld or screwed end connections.
Forged Grades
A105, LF2, F11, F22, F51, F304/L and F316/L.
Technical Specification
Forged Steel Gate / Globe / NRV Valves Data
| Size Range | 10 NB through 50 NB |
|---|---|
| Pressure Rating | ASME – 800# through 2500# |
| Type | Bolted bonnet / Seal welded bonnet OS & Y |
| End Connection | Screwed / Socket weld |
| Operation | Hand wheel / Electrical |
| Port Opening | Full / Regular |
| Seat | Renewable / Seal welded |
| Wedge / Disc | Solid |
| Gasket & Packing | Spiral wound / Graphite |
| MOC | Refer Material Chart ↓ |
| Design Code | API 602 |
| Testing | API 598 |
| Inspection | 3rd party / Client / Manufacturer |
Material of Construction
FLOEC Material Chart
Standard body, bonnet and trim combinations. Other materials are available on request; 600# and above are supplied with Stellite trim as standard.
| # | Body – Bonnet Material | Trim (Wedge / Seat / Disc) | Stem |
|---|---|---|---|
| 01 | Cast carbon steel ASTM A216 Gr. WCB / WCC | 13% Cr. S.S. | A182 F6 |
| 02 | Cast steel ASTM A352 Gr. LCB and LCC | A351 CF8 | A182 F304 |
| 03 | Low alloy steel ASTM A217 Gr. WC1, WC6, WC9, C12 | 13% Cr. S.S. | A182 F6 |
| 04 | Stainless steel 304 ASTM A351 Gr. CF8 | A351 CF8 | A182 F304 |
| 05 | Stainless steel 304L ASTM A351 Gr. CF3 | S.S. 304L CF3 | A182 F304L |
| 06 | Stainless steel 316 ASTM A351 Gr. CF8M | S.S. 316 CF8M | A182 F316 |
| 07 | Stainless steel 316L ASTM A351 Gr. CF3M | S.S. 316L CF3M | A182 F316L |
| 08 | Alloy 20 ASTM A351 Gr. CN7M | CN7M | UNS N08020 |
| 09 | Duplex SS CD4MCu / CuN / CD3MN | Duplex steel | UNS S32205 |
| 10 | Super duplex A890 Gr. 1A, 1B, 1C, 2A, 3A, 4A, 5A, 6A | Super duplex steel | UNS S32550 |
| 11 | Super alloy steel – Hastelloy Gr. B and C | Hastelloy B/C | Hastelloy B/C |
| 12 | Forged carbon steel – ASTM A105 | 13% Cr. S.S. | A182 F6 |
| 13 | Forged alloy steel – ASTM A182 F11, F22 | 13% Cr. S.S. | A182 F6 |
| 14 | Forged SS A182 F304 / 304L / F316 / 316L | F304/L / F316/L | F304/L / F316/L |
| 15 | SG / Ductile / C.I. of different grades | 13% Cr. SS / CF8 / CF8M | A182 F6 / F304 / F316 |
| 16 | Copper alloys of different grades | Cu. alloys / F304/L / F316/L | Cu. alloys / F304/L / F316/L |
Standards & Testing
Specified to Recognised Codes
Certified & Recognised
Accreditations You Can Verify
FLOEC valves are designed, manufactured and dispatched under an audited quality management system. Select a certificate to view the full document.
ISO 9001:2015Bureau Veritas Certification
Design, manufacture and dispatch of manual, electric and pneumatic operated industrial valves.
NSIC RegistrationThe National Small Industries Corporation
Government Purchase Enlistment Certificate for industrial valve manufacture.
Quality Mark AwardQuality Mark Trust
Certificate of Recognition in the Valve Manufacturers category.
Project Enquiry
Need Help Selecting the Right Valve?
Share operating conditions, line size and media. Our engineering team will assist with forged steel gate / globe / nrv valves selection, actuation and specification.
