Dual Disc / Plate Check Valves

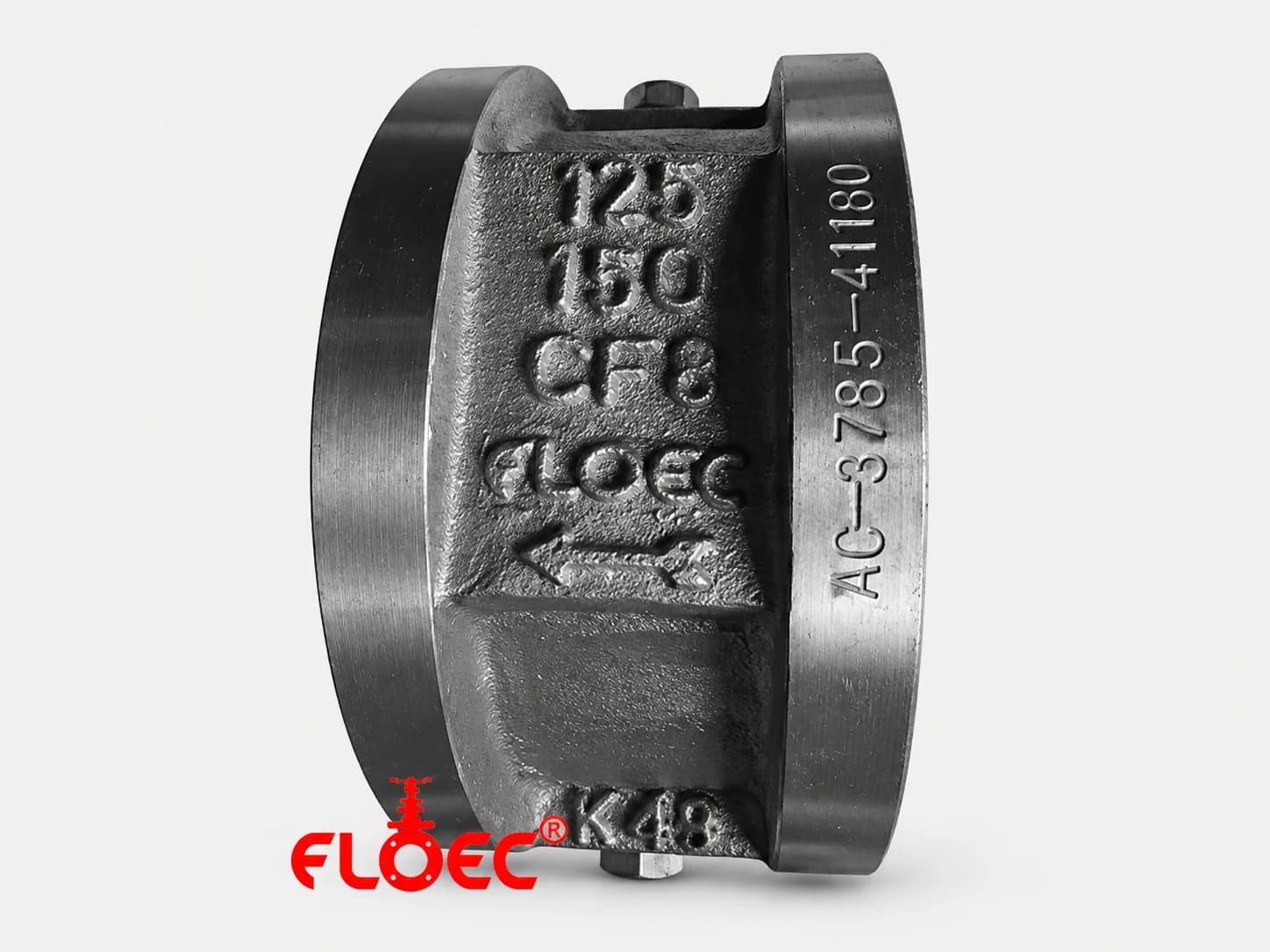

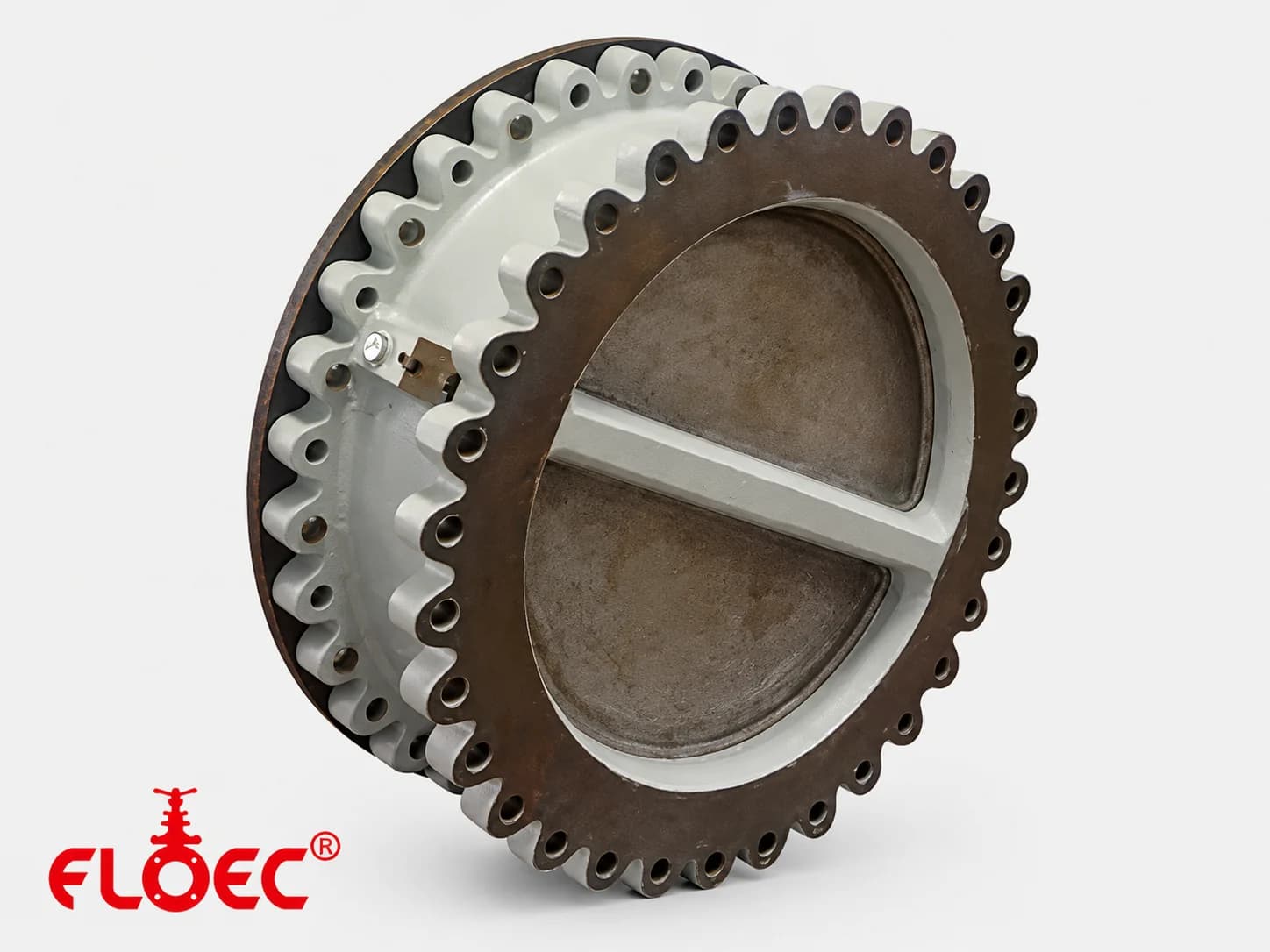

FLOEC dual disc check valves to API 594 — compact, lightweight and spring loaded for horizontal or vertical mounting, in metal-seated, soft-seated and lined options.
Overview1 / 3
Trusted Across Process Industries
Valves and engineered equipment from the AB Group supplied to leading oil & gas companies and government undertakings across power, steel and mining.
Product Overview
Compact Wafer Check Valves with Minimal Pressure Drop
FLOEC Dual Disc Check Valves are designed and manufactured as per API 594 and supplied in an extensive range of sealing — metal to metal, soft, and completely lined valves with diverse lining materials such as different varieties of rubber, PTFE / PFA and similar.
The dual disc design minimises pressure drop across the valve. Spring-loaded discs allow the valve to be mounted in horizontal or vertical directions. Very little space is needed for installation compared with swing check valves, and the valve is also lightweight and economical.
Offered in cast iron, S.G. iron, cast carbon steel, cast stainless steel of all grades, and high alloy steels like Alloy-20, CD4MCu, duplex, super duplex and Hastelloy. Sizes range from 50 NB to 900 NB and pressure ratings from ASME 150# to 600#.
Typical Applications
- Water & Cooling
- Pump Discharge
- Oil & Gas
- Chemical
- HVAC
- Power
EPDM Seat, 150#Key Features
Why Specify FLOEC Dual Disc / Plate Check Valves
Spring-Loaded Plates
Mounts in horizontal or vertical lines.
Low Pressure Drop
Dual disc design minimises losses across the valve.
Space Saving
Needs far less installation length than a swing check valve.
Light & Economical
Lower weight and cost than conventional check valves.
Lined Options
Metal, soft-seated or fully lined with rubber, PTFE or PFA.
API 594
Designed to API 594, tested to API 598.
Technical Specification
Dual Disc / Plate Check Valves Data
| Size Range | 50 NB through 900 NB |
|---|---|
| Pressure Rating | ASME – 150#, 300#, 600# |
| Type | Dual disc – Fully rubber lined / Unlined body |
| End Connection | Sandwich / Flanged |
| Operation | Automatic with return pressure |
| Port Opening | Full |
| Seat | Soft – Rubber / Metal to metal |
| Disc | Dual disc spring loaded |
| Gasket & Packing | Graphite / PTFE |
| MOC | Refer Material Chart ↓ |
| Design Code | API 594 |
| Testing | API 598 |
| Inspection | 3rd party / Client / Manufacturer |
Material of Construction
FLOEC Material Chart
Standard body, bonnet and trim combinations. Other materials are available on request; 600# and above are supplied with Stellite trim as standard.
| # | Body – Bonnet Material | Trim (Wedge / Seat / Disc) | Stem |
|---|---|---|---|
| 01 | Cast carbon steel ASTM A216 Gr. WCB / WCC | 13% Cr. S.S. | A182 F6 |
| 02 | Cast steel ASTM A352 Gr. LCB and LCC | A351 CF8 | A182 F304 |
| 03 | Low alloy steel ASTM A217 Gr. WC1, WC6, WC9, C12 | 13% Cr. S.S. | A182 F6 |
| 04 | Stainless steel 304 ASTM A351 Gr. CF8 | A351 CF8 | A182 F304 |
| 05 | Stainless steel 304L ASTM A351 Gr. CF3 | S.S. 304L CF3 | A182 F304L |
| 06 | Stainless steel 316 ASTM A351 Gr. CF8M | S.S. 316 CF8M | A182 F316 |
| 07 | Stainless steel 316L ASTM A351 Gr. CF3M | S.S. 316L CF3M | A182 F316L |
| 08 | Alloy 20 ASTM A351 Gr. CN7M | CN7M | UNS N08020 |
| 09 | Duplex SS CD4MCu / CuN / CD3MN | Duplex steel | UNS S32205 |
| 10 | Super duplex A890 Gr. 1A, 1B, 1C, 2A, 3A, 4A, 5A, 6A | Super duplex steel | UNS S32550 |
| 11 | Super alloy steel – Hastelloy Gr. B and C | Hastelloy B/C | Hastelloy B/C |
| 12 | Forged carbon steel – ASTM A105 | 13% Cr. S.S. | A182 F6 |
| 13 | Forged alloy steel – ASTM A182 F11, F22 | 13% Cr. S.S. | A182 F6 |
| 14 | Forged SS A182 F304 / 304L / F316 / 316L | F304/L / F316/L | F304/L / F316/L |
| 15 | SG / Ductile / C.I. of different grades | 13% Cr. SS / CF8 / CF8M | A182 F6 / F304 / F316 |
| 16 | Copper alloys of different grades | Cu. alloys / F304/L / F316/L | Cu. alloys / F304/L / F316/L |
Standards & Testing
Specified to Recognised Codes
Certified & Recognised
Accreditations You Can Verify
FLOEC valves are designed, manufactured and dispatched under an audited quality management system. Select a certificate to view the full document.
ISO 9001:2015Bureau Veritas Certification
Design, manufacture and dispatch of manual, electric and pneumatic operated industrial valves.
NSIC RegistrationThe National Small Industries Corporation
Government Purchase Enlistment Certificate for industrial valve manufacture.
Quality Mark AwardQuality Mark Trust
Certificate of Recognition in the Valve Manufacturers category.
Project Enquiry
Need Help Selecting the Right Valve?
Share operating conditions, line size and media. Our engineering team will assist with dual disc / plate check valves selection, actuation and specification.
