FLOEC Industrial Valves
Gate Valves
FLOEC gate valves in bolted bonnet, pressure seal, seal welded and union bonnet designs — solid wedge, flexible wedge and dual disc — from 150# through 2500#.
Overview1 / 5
Trusted Across Process Industries
Valves and engineered equipment from the AB Group supplied to leading oil & gas companies and government undertakings across power, steel and mining.
Product Overview
Full-Bore Gate Valves for Every Bonnet Design
We produce all types of gate valves under our brand “FLOEC”, covering bolted bonnet, pressure seal bonnet, seal welded bonnet, union bonnet and more. FLOEC gate valves in solid wedge, flexible wedge and dual disc designs are made as per API 600 and API 6D, with pressure ratings from 150# through 2500# in forged and cast carbon steel, alloy steel, stainless steel of all grades and super alloys like Alloy-20, Hastelloy-C, duplex and super duplex steels.
They are offered with smooth machined full bore and full opening of the wedge to eliminate additional pressure drop across the valve. Screwed-in or seal welded seat rings guarantee perfect tightness for a longer service life. In high-temperature and high-pressure valves, seat rings are either integral with the body or seal welded as per standard practice for highest safety.
Typical Applications
- Oil & Gas
- Refineries
- Petrochemical
- Power
- Fertilizer
- Water

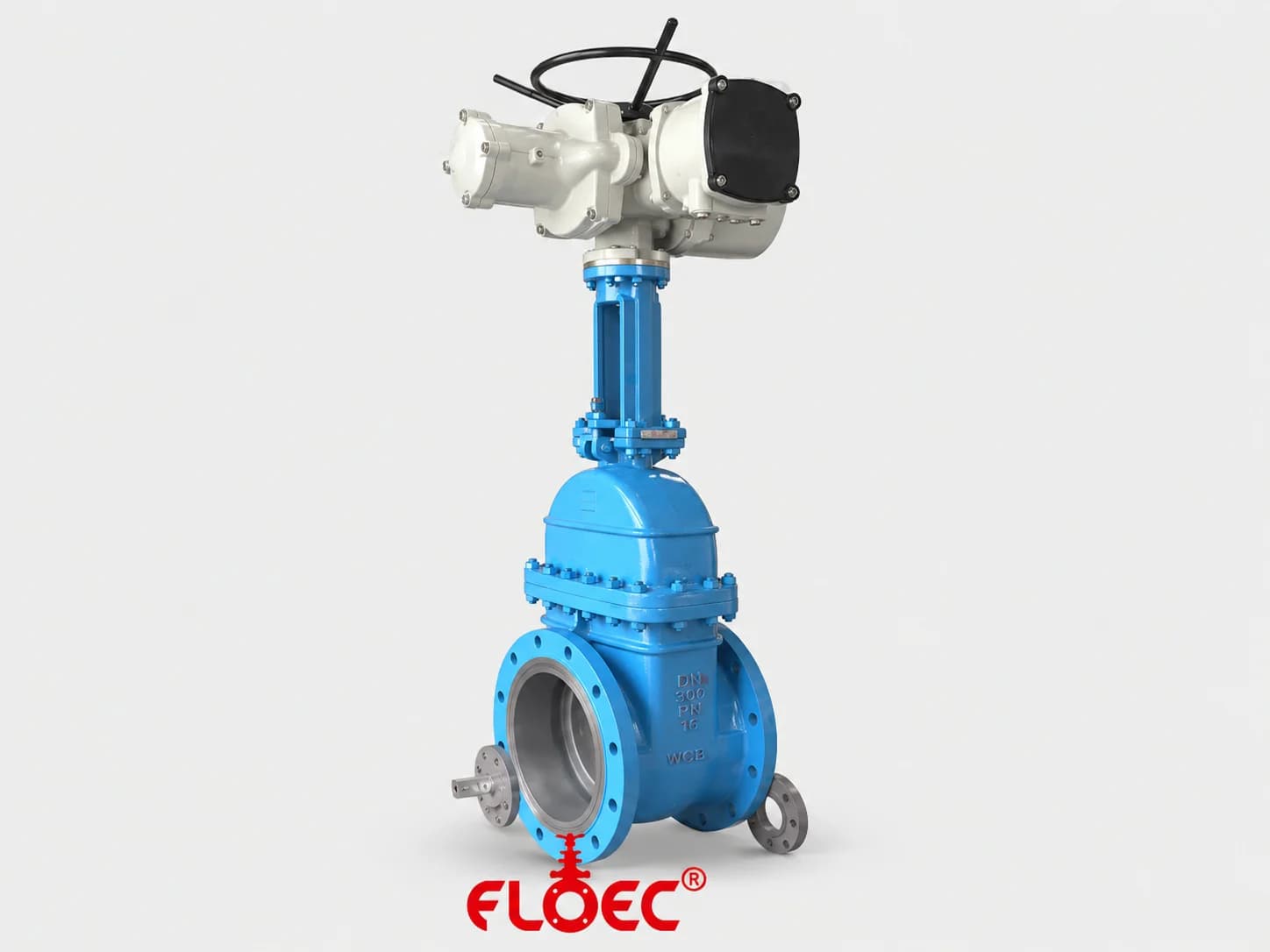

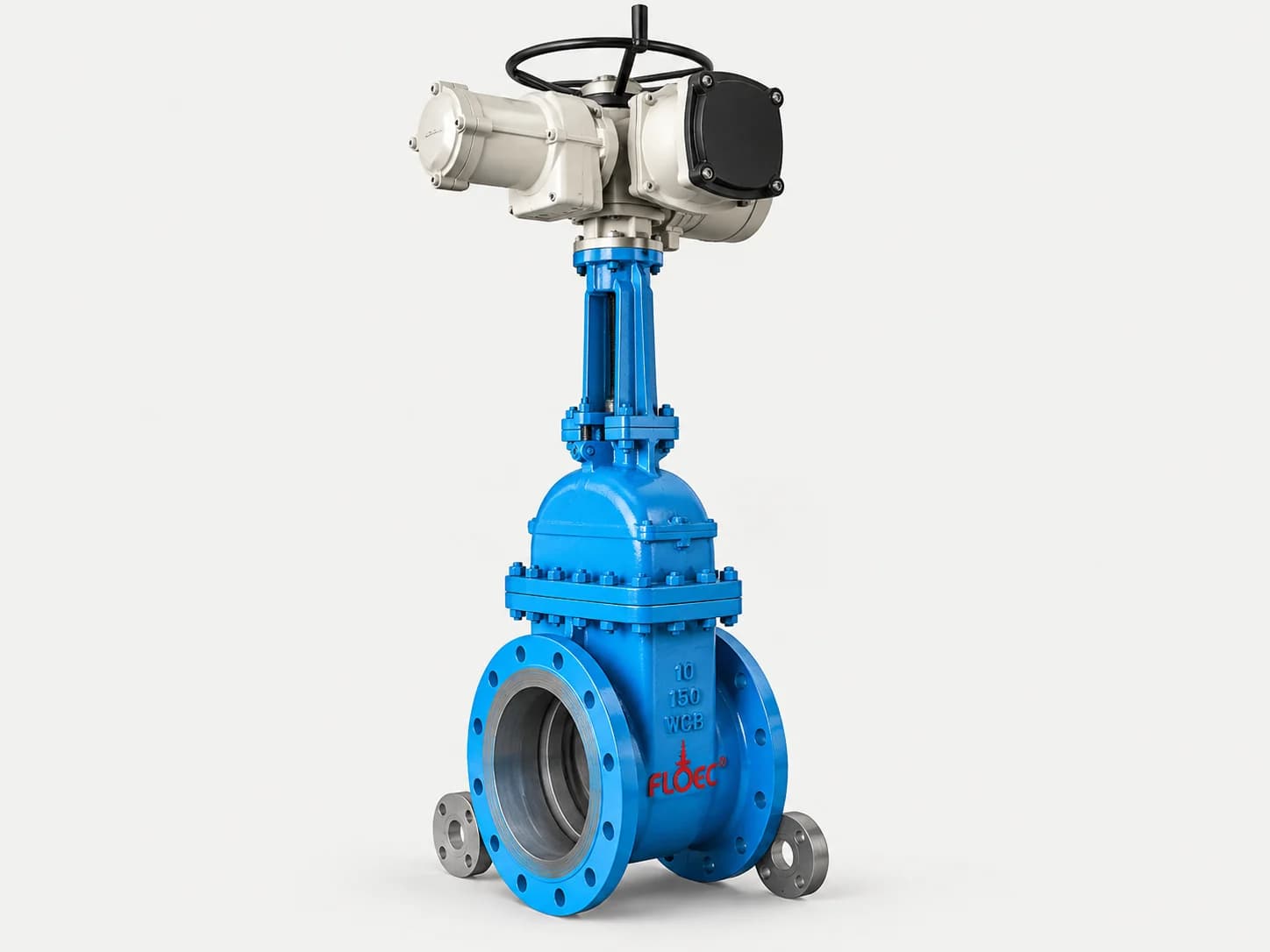

Electric Actuator OperatedKey Features
Why Specify FLOEC Gate Valves
Every Bonnet Design
Bolted, pressure seal, seal welded and union bonnet constructions.
Three Wedge Types
Solid wedge, flexible wedge and dual disc designs to API 600 and API 6D.
Full, Smooth Bore
Machined full bore and full wedge opening eliminate additional pressure drop.
Tight Seat Rings
Screwed-in or seal welded seat rings for long-term tightness.
High P/T Ready
Integral or seal welded seats in high-temperature, high-pressure service.
Super Alloys
Carbon, alloy and stainless steels plus Alloy-20, Hastelloy-C, duplex and super duplex.
Technical Specification
Gate Valves Data
| Size Range | 50 NB through 900 NB |
|---|---|
| Pressure Rating | ASME – 150#, 300#, 400#, 600#, 900#, 1500#, 2500# |
| Type | OS & Y, Bolted / Pressure seal bonnet / Seal welded bonnet etc. |
| End Connection | Flanged / RTJ / Butt weld |
| Operation | Hand wheel / Manual gear / Electric motor actuator |
| Port Opening | Full |
| Seat | Integral / Renewable / Seal welded |
| Wedge | Solid / Flexible / Dual disc |
| Gasket & Packing | PTFE / Graphite / Spiral wound / Ring joint |
| MOC | Refer Material Chart ↓ |
| Design Code | API 595 / 600 / 603 / 604 / 6D |
| Testing | API 598 |
| Inspection | 3rd party / Client / Manufacturer |
Material of Construction
FLOEC Material Chart
Standard body, bonnet and trim combinations. Other materials are available on request; 600# and above are supplied with Stellite trim as standard.
| # | Body – Bonnet Material | Trim (Wedge / Seat / Disc) | Stem |
|---|---|---|---|
| 01 | Cast carbon steel ASTM A216 Gr. WCB / WCC | 13% Cr. S.S. | A182 F6 |
| 02 | Cast steel ASTM A352 Gr. LCB and LCC | A351 CF8 | A182 F304 |
| 03 | Low alloy steel ASTM A217 Gr. WC1, WC6, WC9, C12 | 13% Cr. S.S. | A182 F6 |
| 04 | Stainless steel 304 ASTM A351 Gr. CF8 | A351 CF8 | A182 F304 |
| 05 | Stainless steel 304L ASTM A351 Gr. CF3 | S.S. 304L CF3 | A182 F304L |
| 06 | Stainless steel 316 ASTM A351 Gr. CF8M | S.S. 316 CF8M | A182 F316 |
| 07 | Stainless steel 316L ASTM A351 Gr. CF3M | S.S. 316L CF3M | A182 F316L |
| 08 | Alloy 20 ASTM A351 Gr. CN7M | CN7M | UNS N08020 |
| 09 | Duplex SS CD4MCu / CuN / CD3MN | Duplex steel | UNS S32205 |
| 10 | Super duplex A890 Gr. 1A, 1B, 1C, 2A, 3A, 4A, 5A, 6A | Super duplex steel | UNS S32550 |
| 11 | Super alloy steel – Hastelloy Gr. B and C | Hastelloy B/C | Hastelloy B/C |
| 12 | Forged carbon steel – ASTM A105 | 13% Cr. S.S. | A182 F6 |
| 13 | Forged alloy steel – ASTM A182 F11, F22 | 13% Cr. S.S. | A182 F6 |
| 14 | Forged SS A182 F304 / 304L / F316 / 316L | F304/L / F316/L | F304/L / F316/L |
| 15 | SG / Ductile / C.I. of different grades | 13% Cr. SS / CF8 / CF8M | A182 F6 / F304 / F316 |
| 16 | Copper alloys of different grades | Cu. alloys / F304/L / F316/L | Cu. alloys / F304/L / F316/L |
Standards & Testing
Specified to Recognised Codes
Certified & Recognised
Accreditations You Can Verify
FLOEC valves are designed, manufactured and dispatched under an audited quality management system. Select a certificate to view the full document.
ISO 9001:2015Bureau Veritas Certification
Design, manufacture and dispatch of manual, electric and pneumatic operated industrial valves.
NSIC RegistrationThe National Small Industries Corporation
Government Purchase Enlistment Certificate for industrial valve manufacture.
Quality Mark AwardQuality Mark Trust
Certificate of Recognition in the Valve Manufacturers category.
Project Enquiry
Need Help Selecting the Right Valve?
Share operating conditions, line size and media. Our engineering team will assist with gate valves selection, actuation and specification.
