Swing Check / Non-Return Valves
FLOEC swing check valves with a precisely guided hinged disc that prevents reverse flow on pump failure or abrupt shutdown.
Overview1 / 2
Trusted Across Process Industries
Valves and engineered equipment from the AB Group supplied to leading oil & gas companies and government undertakings across power, steel and mining.
Product Overview
Reliable Reverse-Flow Prevention

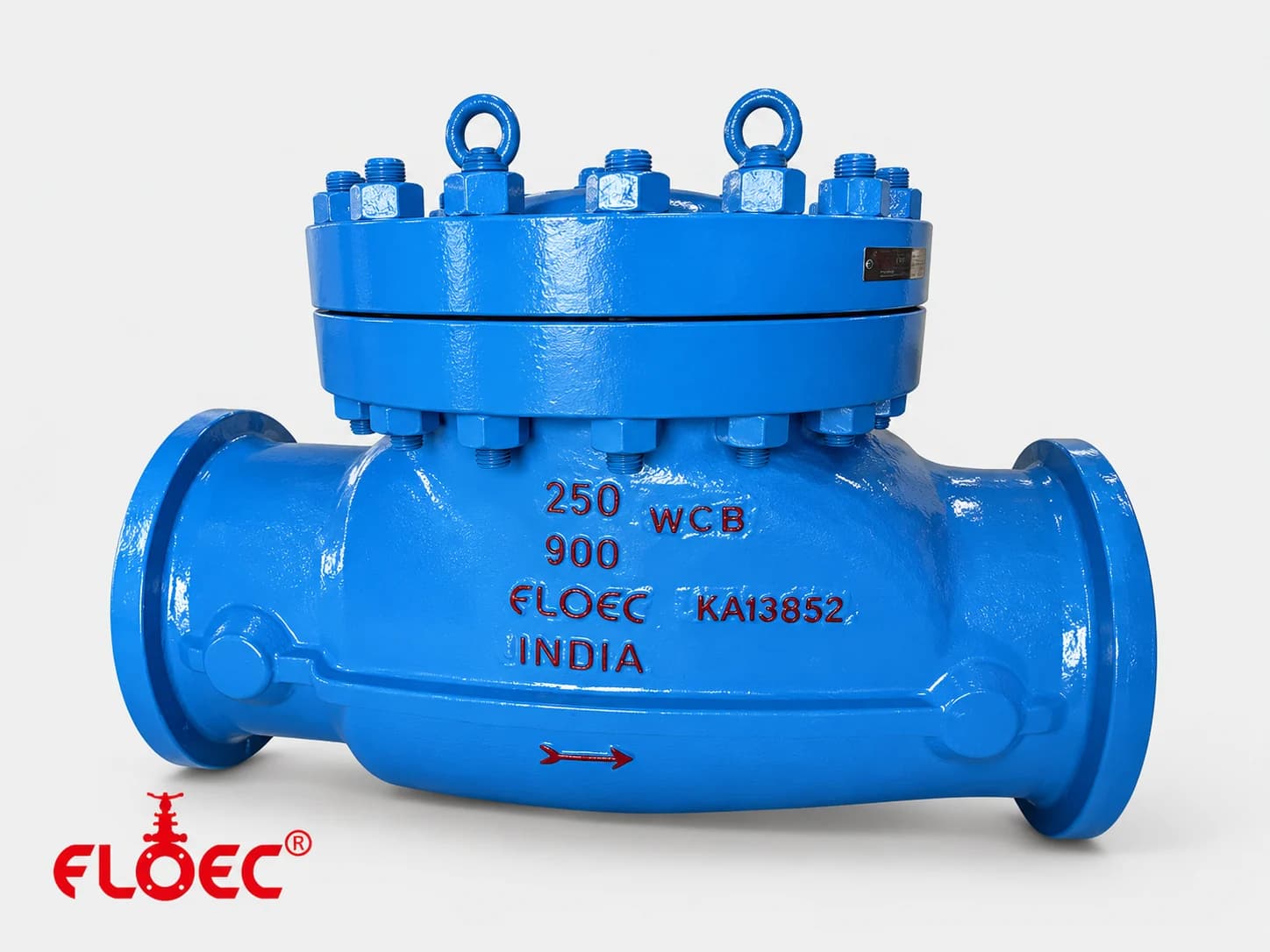

FLOEC Swing Check / Non-Return Valves are designed and manufactured as per BS 1868. Check valves are essential in the piping system of every field: they prevent reverse flow of fluid during failure or abrupt shut-down of the piping system, so they need very good sealing efficiency.
FLOEC swing check valves have a precisely guided swinging disc through a hinge. The hinge and swivel disc are linked to maintain adequate flexibility so that sealing is smooth and efficient.
They are available with metal-to-metal sealing for high temperature and pressure, and soft sealing for pneumatic and vacuum applications. The valve functions smoothly with a very nominal differential pressure from either side, and the disc is compact and lightweight so that pressure drop across the valve is minimal.
Available in cast iron, cast carbon steel, cast stainless steel of all grades and high alloy steels like Alloy-20, CD4MCu, duplex, super duplex and Hastelloy. Sizes range from 50 NB to 900 NB and pressure ratings from ASME 125# through 2500#.
Typical Applications
- Pump Discharge
- Oil & Gas
- Power
- Water
- Chemical
- Refineries
Key Features
Why Specify FLOEC Swing Check / Non-Return Valves
Guided Hinged Disc
Precisely guided swinging disc with a flexible hinge link for smooth sealing.
Low Cracking Pressure
Operates with a very nominal differential pressure from either side.
Minimal Pressure Drop
Compact, lightweight disc keeps losses across the valve low.
Metal or Soft Seat
Metal seating for high P/T; soft seating for pneumatic and vacuum duty.
BS 1868 Design
Designed and manufactured to BS 1868, tested to BS 6755 / API 598.
High Alloy Options
Alloy-20, CD4MCu, duplex, super duplex and Hastelloy bodies.
Technical Specification
Swing Check / Non-Return Valves Data
| Size Range | 15 NB through 900 NB |
|---|---|
| Pressure Rating | ASME – 150#, 300#, 400#, 600#, 900#, 1500#, 2500# |
| Type | Swing / Lift / Dual disc / Wafer disc |
| End Connection | Flanged / Butt weld / Wafer |
| Operation | Automatic with return pressure |
| Port Opening | Full |
| Seat | Integral / Renewable / Weld deposited |
| Disc | Solid |
| Gasket & Packing | PTFE / Graphite / Spiral wound / Ring joint |
| MOC | Refer Material Chart ↓ |
| Design Code | BS 1868 |
| Testing | BS 6755 / API 598 |
| Inspection | 3rd party / Client / Manufacturer |
Material of Construction
FLOEC Material Chart
Standard body, bonnet and trim combinations. Other materials are available on request; 600# and above are supplied with Stellite trim as standard.
| # | Body – Bonnet Material | Trim (Wedge / Seat / Disc) | Stem |
|---|---|---|---|
| 01 | Cast carbon steel ASTM A216 Gr. WCB / WCC | 13% Cr. S.S. | A182 F6 |
| 02 | Cast steel ASTM A352 Gr. LCB and LCC | A351 CF8 | A182 F304 |
| 03 | Low alloy steel ASTM A217 Gr. WC1, WC6, WC9, C12 | 13% Cr. S.S. | A182 F6 |
| 04 | Stainless steel 304 ASTM A351 Gr. CF8 | A351 CF8 | A182 F304 |
| 05 | Stainless steel 304L ASTM A351 Gr. CF3 | S.S. 304L CF3 | A182 F304L |
| 06 | Stainless steel 316 ASTM A351 Gr. CF8M | S.S. 316 CF8M | A182 F316 |
| 07 | Stainless steel 316L ASTM A351 Gr. CF3M | S.S. 316L CF3M | A182 F316L |
| 08 | Alloy 20 ASTM A351 Gr. CN7M | CN7M | UNS N08020 |
| 09 | Duplex SS CD4MCu / CuN / CD3MN | Duplex steel | UNS S32205 |
| 10 | Super duplex A890 Gr. 1A, 1B, 1C, 2A, 3A, 4A, 5A, 6A | Super duplex steel | UNS S32550 |
| 11 | Super alloy steel – Hastelloy Gr. B and C | Hastelloy B/C | Hastelloy B/C |
| 12 | Forged carbon steel – ASTM A105 | 13% Cr. S.S. | A182 F6 |
| 13 | Forged alloy steel – ASTM A182 F11, F22 | 13% Cr. S.S. | A182 F6 |
| 14 | Forged SS A182 F304 / 304L / F316 / 316L | F304/L / F316/L | F304/L / F316/L |
| 15 | SG / Ductile / C.I. of different grades | 13% Cr. SS / CF8 / CF8M | A182 F6 / F304 / F316 |
| 16 | Copper alloys of different grades | Cu. alloys / F304/L / F316/L | Cu. alloys / F304/L / F316/L |
Standards & Testing
Specified to Recognised Codes
Certified & Recognised
Accreditations You Can Verify
FLOEC valves are designed, manufactured and dispatched under an audited quality management system. Select a certificate to view the full document.
ISO 9001:2015Bureau Veritas Certification
Design, manufacture and dispatch of manual, electric and pneumatic operated industrial valves.
NSIC RegistrationThe National Small Industries Corporation
Government Purchase Enlistment Certificate for industrial valve manufacture.
Quality Mark AwardQuality Mark Trust
Certificate of Recognition in the Valve Manufacturers category.
Project Enquiry
Need Help Selecting the Right Valve?
Share operating conditions, line size and media. Our engineering team will assist with swing check / non-return valves selection, actuation and specification.
